1. Basic Sankey Diagram

// this is a comment and completely ignored
// each diagram-flow is specified in the format:
// "SOURCE [AMOUNT] TARGET"
source [100] target
source two [30] target
target [65] target two

• You can specify one flow per line.
• SOURCE_NODE [AMOUNT] TARGET_NODE is the basic syntax for a flow / link.
• Lines starting with a "//" are treated as comments and completely ignored in the output.
• Names are case-sensitive. ("a" is treated different as "A")

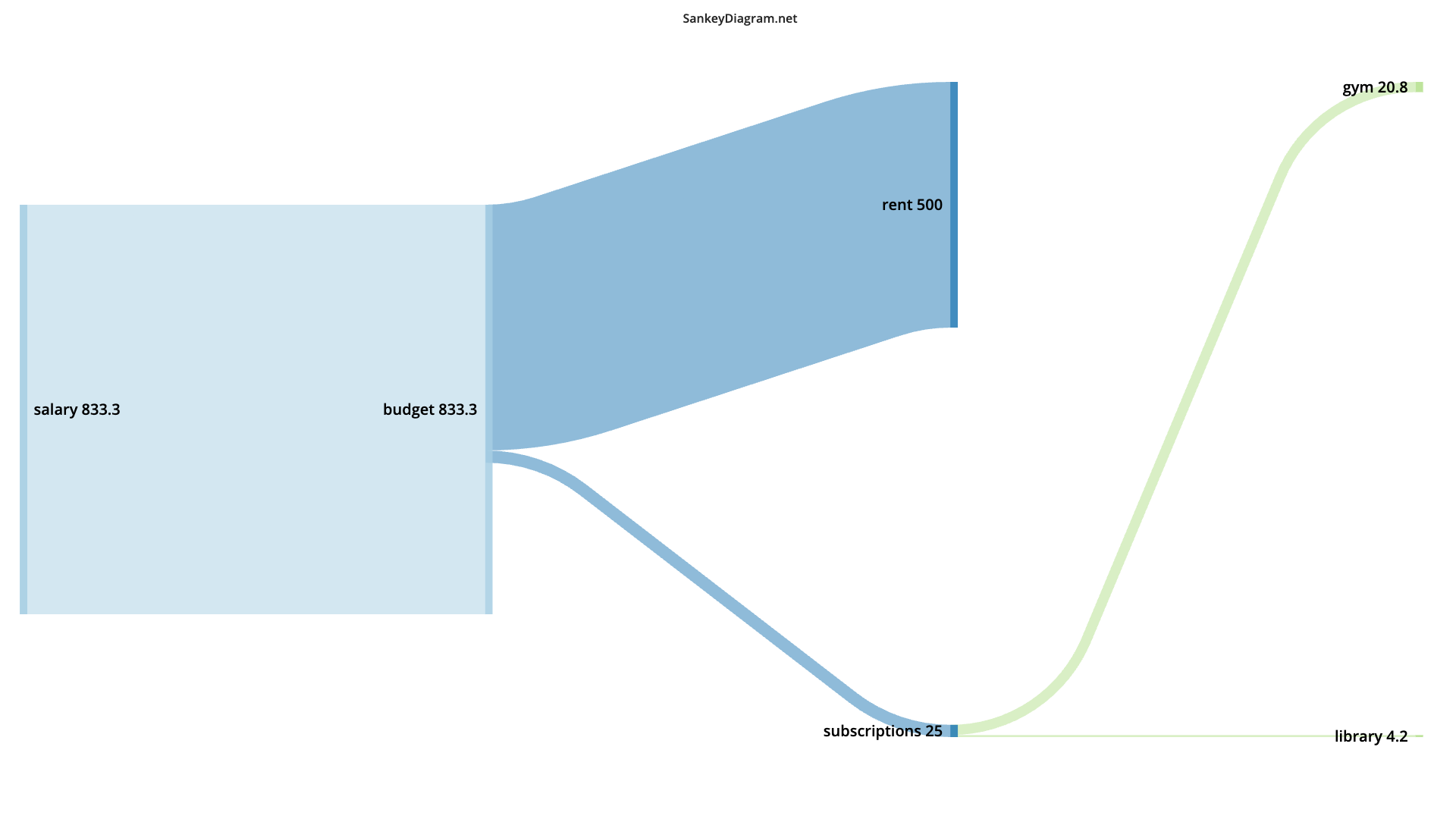

2. Auto-Calculating Flow Amounts ([?]-operator)

salary [20] budget
// the "?" operator automatically sums-up all outgoing values
budget [?] groceries
groceries [3] vegetables
groceries [?] fruits
fruits [10] apples
fruits [5] bananas

• You can use "[?]" as the amount to automatically sum-up all the outgoing amounts of this flow.
• You can chain multiple "[?]" as long as there are some numeric values to sum-up in the end.

3. Sankey Diagram with Custom Colors

source red1 [100] target [red]
source red2 [10] target [red]
source red3 [10] target [red]
source green [30] target [green]
target [65] target orange [orange]
target [20] target pink [#f1337f]

• You can optionally specify a custom color for each flow.
• Colors are specified at the end of each line inside square-brackets.
• You can use a set of common pre-defined color names like "red", "blue", "green", or even enter custom hex-color-codes like "#FF0000".
• Find a list of all supported shorthand color names here: list of css color names with hex codees

4. Sankey Diagram with Loops

// sankeys may have loops
a [10] b
b [10] c
c [5] b
c [5] d

• Loops referencing previous nodes are allowed.

5. Color Flows Based on Source's First Word

source one [10] target one
source two [10] target one
source three [10] target one
source three [5] middle
middle [2.5] target two
middle [2.5] end
target one [10] target two
target one [10] target three
target one [10] target four
target two [15] target five
target three [10] target five
target four [10] target five

• If the setting "Pick color based on first word only" is checked, all flows where the source starts with the same word, will have the same color.
